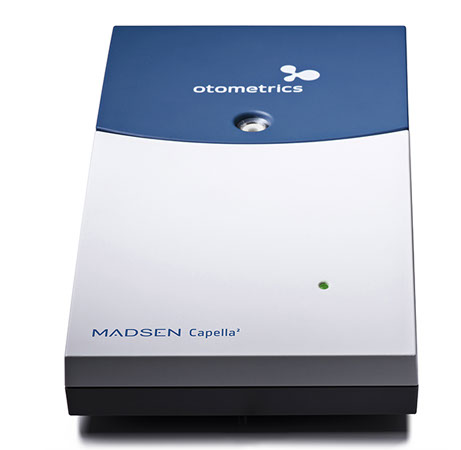

MADSEN Capella2* is a powerful OAE system designed to deliver accurate and objective analysis of cochlear function for all ages. Intuitive and easy to use, MADSEN Capella2 provides dynamic features in a modern workflow, including:

Ability to check the probe fit at both the beginning and end of a measurement

Predefined user tests

Programmable sequences

Ability to swap ear data

Easy comparison of results with normative values

Perform DPOAE, TEOAE and SOAE analyses quickly and accurately with MADSEN Capella2 and discover a new level of efficiency in your clinic.

A flexible way to analyze OAE responses

MADSEN Capella² is so flexible that you can use it for both routine testing and more advanced cases. Multiple stimulus calibration choices and an automated frequency selection alternative are just two features that can enhance the way you work.

For stimulus calibration, we introduce Chirp or Optimized In Situ. The Chirp works well when speed is important. When combined with predefined measurement settings it is a suitable tool for general testing of patients.

When accuracy is crucial, Optimized In Situ calibration provides more confidence in your data collection. The historical probe fit and data comparison enable you to assess accurately cases where slight changes in the response are crucial, for instance, for patients receiving ototoxic medications or treatment.

An adaptable otoacoustic emissions solution

PrecisePoints™ in MADSEN Astera² provides the simplest way to set up the exact test frequencies you want. It allows the operator to quickly select commonly used audiometric test frequencies as the F2 test frequencies or set a range with predefined points per octave.

For advanced users there is the possibility to configure manually any frequency combination desired providing a virtually infinite number of points per octave.

Discover an otoacoustic emissions solution that lets you work the way you want

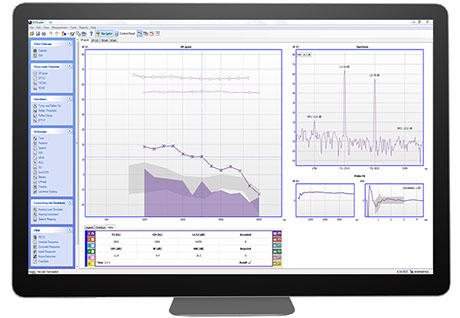

Intuitive easy-to-use software MADSEN Capella² works with OTOsuite – the proprietary software program from Otometrics. OTOsuite is comprehensive and powerful yet easy to learn and simple to use. All of the functions you need are accessible on the intuitive control panel. It is easy to select your preferred test and measurement settings with a few clicks.

DPOAE Specification

• Stimulus: Frequency range: 500-10000 Hz
• Frequency step: 1 Hz
• Level: 0-75 dB SPL (Dependent on frequency)
• Level step: 1 dB
• Recording: Acquisition time: 204.27ms
• A/D resolution: 16 bit
• Preprogrammed and User Defined Protcols
• Multiple Normative Data Sets
• Choice of Chirp or Optimized In Situ calibration

TEOAE and SOAE specifications

• Stimulus: Click and Tone Burst
• Levels 40-90 dB SPL
• Frequency Bandwidth: 450-5000 Hz
• TEOAE: Correlation and SNR (per band, and\or overall)
• SOAE: Asynchronous and Synchronous (levels btw 40 and 60 dB SPL)measurements
• Preprogrammed and User Defined Protocol

MADSEN Capella² Support

• MADSEN CAPELLA² (1089) MANUAL
• MADSEN CAPELLA² (1089) REFERENCE MANUAL
• MADSEN CAPELLA (1021) MANUAL
• MADSEN CAPELLA (1021) QUICK GUIDE
• FAQ

MADSEN Capella² Downloads

• BROCHURE
• WHITEPAPER: OPTIMIZED IN-SITU CALIBRATION FOR DPOAE
• WHITEPAPER: PRECISEPOINTS ON MADSEN CAPELLA²
• WHITEPAPER: UNDERSTANDING PROBE FIT AND HISTORICAL PROBE FIT COMPARISONS
